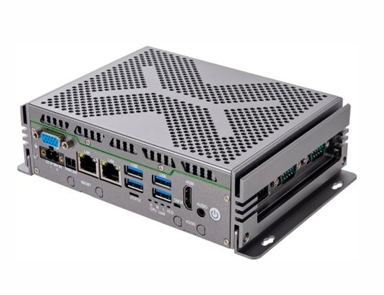

All-Aluminum Industrial Compact Embedded Computer Supports Intel® J6412,N97 & 4th ~ 12th Gen U-Series CoreTM i3/i5/i7 Processors Flexible CPU Options

  • All-Aluminum Industrial Compact Embedded Computer Supports Intel® J6412,N97 & 4th ~ 12th Gen U-Series CoreTM i3/i5/i7 Processors Flexible CPU Options
Tempat asal Cina
Nama merek ITD/OEM
Sertifikasi CE, FCC, RoHS Compliance
Nomor model ITD-MNPC-xxxxxx-M11
Kuantitas min Order 1 buah
Harga TBA
Syarat-syarat pembayaran T/T, Paypal
Detail produk
Prosesor Prosesor Intel® J6412,N97 & Generasi ke-4 ~ ke-12 Seri U CoreTM i3/i5/i7 Memori sistem Jenis memori ditentukan oleh model CPU.
Suhu Penyimpanan -30 ℃ ~ 85 ℃ Suhu Operasional -20℃~70℃
Catu Daya Konektor Phoenix 2-pin DC 9~36V
Menyoroti

All-Aluminum Industrial Embedded Computer

,

Compact Embedded PC Intel J6412

,

Industrial PC 4th-12th Gen Core
Tinggalkan pesan
Deskripsi Produk

All-Aluminum Industrial Compact Embedded Computer Supports Intel® J6412,N97 & 4th ~ 12th Gen U-Series CoreTM i3/i5/i7 Processors Flexible CPU Options 0All-Aluminum Industrial Compact Embedded Computer Supports Intel® J6412,N97 & 4th ~ 12th Gen U-Series CoreTM i3/i5/i7 Processors Flexible CPU Options 1All-Aluminum Industrial Compact Embedded Computer Supports Intel® J6412,N97 & 4th ~ 12th Gen U-Series CoreTM i3/i5/i7 Processors Flexible CPU Options 2All-Aluminum Industrial Compact Embedded Computer Supports Intel® J6412,N97 & 4th ~ 12th Gen U-Series CoreTM i3/i5/i7 Processors Flexible CPU Options 3

INTRODUCTION:



Industrial Compact Embedded Computer



FEATURES

◼Supports Intel® J6412,N97 & 4th ~ 12th Gen U-Series CoreTM i3/i5/i7 Processors

◼Flexible CPU Options

◼VGA+HDMI Dual Displays

◼M.2 2280 SSD + mSATA

◼9~36VWide Range DC Input



Specification

system Windows® 7/10/11,Linux
Processor lntel® J6412,N97 & 4th~12th Gen U-Series CoreTM i3/i5/i7
System RAM

The memory type is determined by the CPU model.


Ethernet 2 × GbE RJ45 Intel i210-AT (4 x GbE RJ45 optional)
I/O

4 × USB3.0, 2 × USB2.0 ( Internal Pin Header)

1 × DB-9 COM1/2 RS-232/485/422

1 × DB-9 COM3/4 RS-232 ( Optional 2 × CAN )

1 × Audio Line-out/Mic-in

1 × RemoteSwitchPhoenix

1 × AT/ATX Switch

1 × Clear CMOS Button

1 × SIM Card Slot

1 × HDMI 1 × VGA

1 × Power Button with LED

8 × GPIO ( 4×Input, 4×Output )


Storge

1 × M.2 2280 SSD ( SATA/NVMe ) 1 × mSATA


Expansions

Mini-PCle x 1 Full Size with SIM Card for WiFi/BT

3G/4G / CAN ( Co-lay with mSATA )

Mini-PCIe x 1 Half Size for WiFi/BT

M.2 Key B x 1 for 5G


OS support Windows® 7/10/11,Linux
Power DC 9~36V 2-pin PhoenixConnector
Mechanical
Construction Die-Casting Aluminum Chassis
Mounting WallMount (Default),Din Rail (Mounting Clip Optional)
Dimension 166.0 × 120.0 × 48.0 mm ( W × D × H)
Net Weight TBD
Working Environment

Storage Temp.  Range		 -20℃~70℃
Working Temp. Range    -30℃~85℃
Storage Humidity  10%~90% @30℃(Non-condensing)



 Dimensions ■Unit: mm Industrial Compact Embedded Computer Stand Mounting Installation (Mounting Kit Included in Default Package)



All-Aluminum Industrial Compact Embedded Computer Supports Intel® J6412,N97 & 4th ~ 12th Gen U-Series CoreTM i3/i5/i7 Processors Flexible CPU Options 4
