8" industrial-grade lcd touch display lcd module touch screen kits
| Tempat asal | Cina |
|---|---|
| Nama merek | ITD/OEM |
| Sertifikasi | CE, FCC, RoHS |
| Nomor model | ITD08KITT5xxxx |
| Kuantitas min Order | 1 buah |
| Harga | TBA |
| Kemasan rincian | 1-5pcs/CTN, Aman, Tegas, cocok untuk pengiriman internasional |
| Waktu pengiriman | 7-10 Hari Kerja |
| Syarat-syarat pembayaran | T/T, PayPal(173515844@qq.com) |
| Menyediakan kemampuan | 10000 buah/bulan |
Detail produk
| Kecerahan | 300~1000 nit | Masukan Sinyal | Masukan HDMI/VGA/DVI |
|---|---|---|---|
| Resolusi | 1024*768 | Lihat Malaikat | 80/80/80/80 |
| Pengontrol sentuh | 1 × USB | Sentuh Teknologi | Sentuhan kapasitif yang diproyeksikan |
| Kekerasan Permukaan | 7h | Perawatan Permukaan | Anti-Silau, Anti-Reflektif, Anti-Jari opsional |
Deskripsi Produk
8" industrial-grade lcd touch display lcd module touch screen kits
ITD’s LCD touchscreen Kit is like an industrial touchscreen monitor without an enclosure that you would install or build into a piece of equipment, device, enclosure, fixture, or other housing of your design. The touch panels can be air bonded or optical bonded on the LCD panels. Optical bonding will improve the stability&duribility, reduce the reflection, promote the viewing angle, and enhance the perceived brightness. It also provides resistance to dust particles and shows much better display effect. We offer sizes ranging from 7″ to 65″. Video inputs can include VGA, DVI, HDMI, DP or AV. LVDS&USB cables, LED driver board, OSD menu board, video cable can be all included.
Specs of 8" touch screen lcd kits
| 8 inch LCD Touchscreen Kits |
|
| Model Name | ITD08KITT5xxxx |
| IP Rating | Front IP65 |
LCD Panel |
|
| Screen Diagonal (Inch) | 8” |
| Display Active Screen Size (mm) | 162.048(W)×121.536(H) |
| Aspect Ratio | 4:3 |
| Physical Resolution | 1024×768 |
| Maximum Resolution Supported | 1920×1080 |
| Colors | 262K/16.7M |
| Brightness (cd/m2) | 400 cd/m2 (1000 cd/m2 optional) |
| Response Time | 20ms |
| Contrast Ratio | 1000:1 |
| View Angels | 80/80/80/80 |
| Backlight/Backlight Lifetime | LED Backlight with 30000Hours’Lifetime |
Touch Panel |
|
| Touch Technology | Projected Capacitive Touch |
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi |
| Touch Life | 50,000,000times/click |
| Surface Hardness | 7H |
| Surface Treatment | Anti-Glare, Anti-Reflective, Anti-Finger optional |
| Glass Strengthening | Chemically Strengthened |
AD Board(optional) |
|
| Video Input | 1 × VGA |
| 1 × DVI-I | |
| 1 × HDMI | |
| Audio | 1 × PC-Audio |
| Touch Connector | 1 × USB |
| Power Connector | 1 × DC2.0 |
Operation |
|
| Operating Temperature Range | -20~70°C |
| Humidity Range (RH) | 10-90% |
| 24/7/365 Use | Supported |
Power |
|
| Power Input | DC 12V, DC9~36V input optional |
| Power Consumption | 6W |

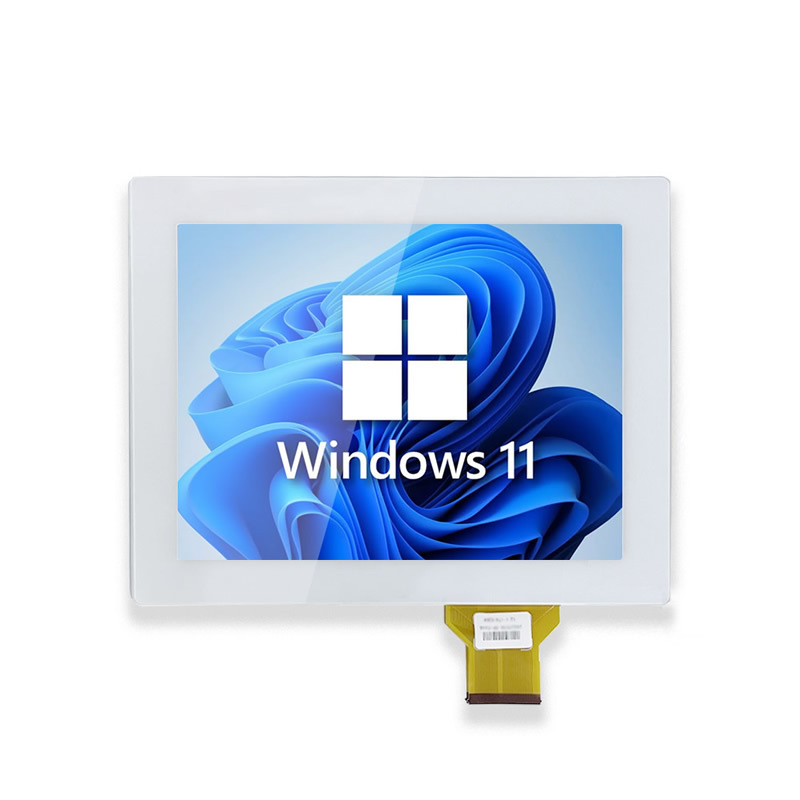

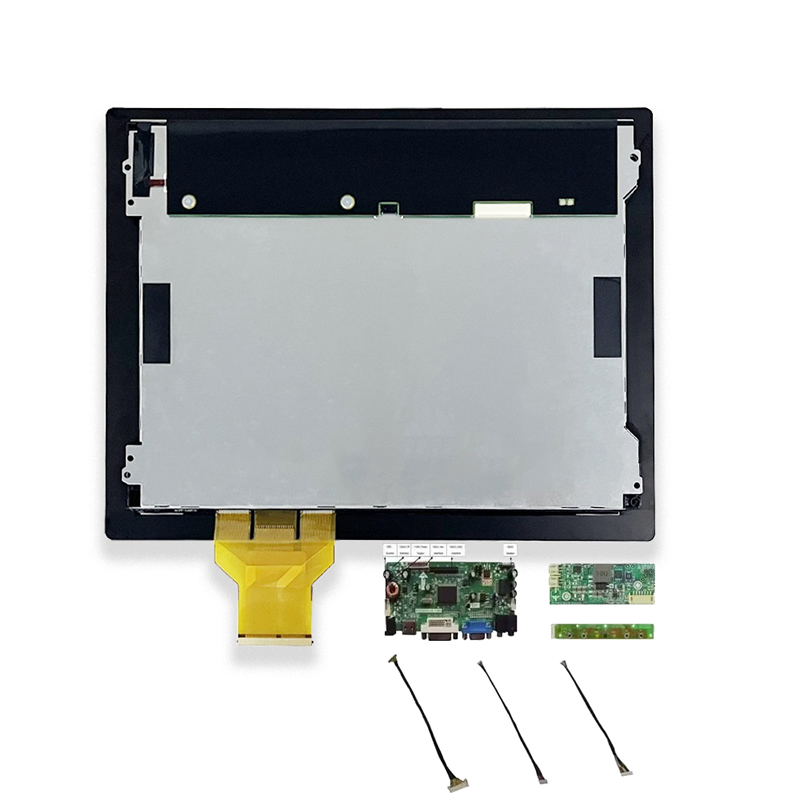

Product Image
