15 inch Touchscreen LCD Kits touch display USB Touch Display Module
| Tempat asal | Cina |
|---|---|
| Nama merek | ITD/OEM |
| Sertifikasi | CE, FCC, RoHS |
| Nomor model | ITD32OFN1KTxx |
| Kuantitas min Order | 1 buah |
| Harga | TBA |
| Kemasan rincian | 1-5pcs/CTN, Aman, Tegas, cocok untuk pengiriman internasional |
| Waktu pengiriman | 7-10 Hari Kerja |
| Syarat-syarat pembayaran | T/T, PayPal(173515844@qq.com) |
| Menyediakan kemampuan | 10000 buah/bulan |
Detail produk
| Kecerahan | 300~1500 nit | Masukan Sinyal | Masukan HDMI/VGA/DVI |
|---|---|---|---|
| Resolusi | 1024*768 | Peringkat IP | IP65 depan |
| Suhu Operasional | -20 ° C ~ 70 ° C. | Lihat Malaikat | 89/89/89/89 |
| Pengontrol sentuh | 1 × USB | Konektor Daya | 1x DC2.0 |
| Gunakan 24/7/365 | Didukung |
Deskripsi Produk
15 inch Touchscreen LCD Kits touch display USB Touch Display Module

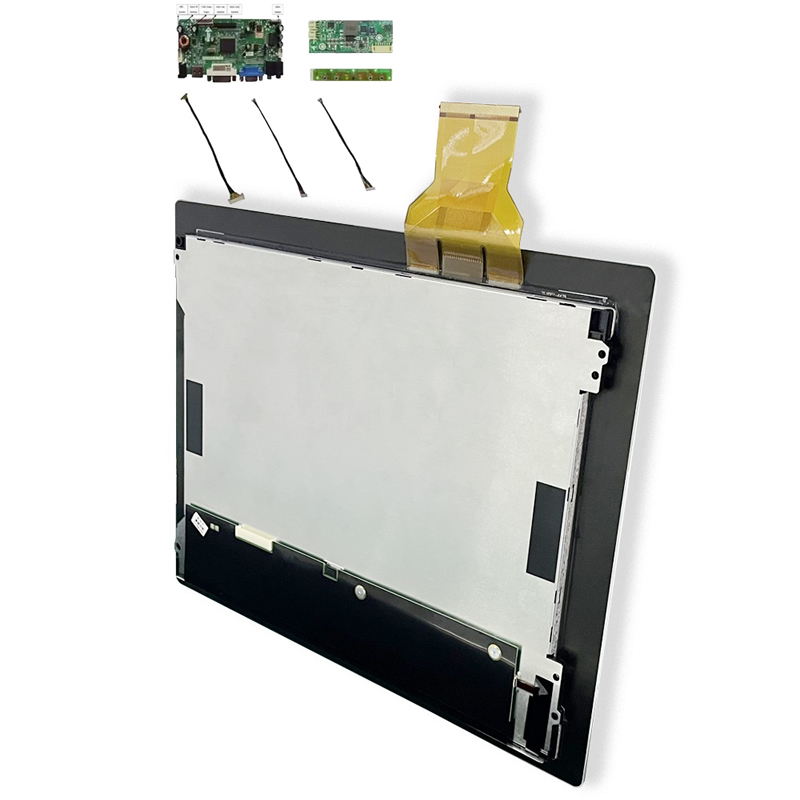

ITD’s LCD touchscreen Kit is like an industrial touchscreen monitor without an enclosure that you would install or build into a piece of equipment, device, enclosure, fixture, or other housing of your design. The touch panels can be air bonded or optical bonded on the LCD panels. Optical bonding will improve the stability&duribility, reduce the reflection, promote the viewing angle, and enhance the perceived brightness. It also provides resistance to dust particles and shows much better display effect. We offer sizes ranging from 7″ to 65″. Video inputs can include VGA, DVI, HDMI, DP or AV. LVDS&USB cables, LED driver board, OSD menu board, video cable can be all included.
Specs
| 15 inch LCD Touchscreen Kits |
|
| Model Name | ITD15KITT5xxxx |
| IP Rating | Front IP65 |
LCD Panel |
|
| Screen Diagonal (Inch) | 15” |
| Display Active Screen Size (mm) | 304.128(W)×228.096(H) |
| Aspect Ratio | 4:3 |
| Physical Resolution | 1024×768 |
| Maximum Resolution Supported | 1920×1080 |
| Colors | 16.7M |
| Brightness (cd/m2) | 350 cd/m2 (1000, 1500 cd/m2 optional) |
| Response Time | 30ms |
| Contrast Ratio | 1000:1 |
| View Angels | 89/89/89/89 |
| Backlight/Backlight Lifetime | LED Backlight with 50000Hours’Lifetime |
Touch Panel |
|
| Touch Technology | Projected Capacitive Touch |
| Touch Drivers | , Linux, Android, Mac, Raspberry Pi |
| Touch Life | 50,000,000times/click |
| Surface Hardness | 7H |
| Surface Treatment | Anti-Glare, Anti-Reflective, Anti-Finger optional |
| Glass Strengthening | Chemically Strengthened |
AD Board(optional) |
|
| Video Input | 1 × VGA |
| 1 × DVI-I | |
| 1 × HDMI | |
| Audio | 1 × PC-Audio |
| Touch Connector | 1 × USB |
| Power Connector | 1 × DC2.0 |
Operation |
|
| Operating Temperature Range | -20~70°C |
| Humidity Range (RH) | 10-90% |
| 24/7/365 Use | Supported |
Power |
|
| Power Input | DC 12V, DC9~36V input optional |
| Power Consumption | 12W |

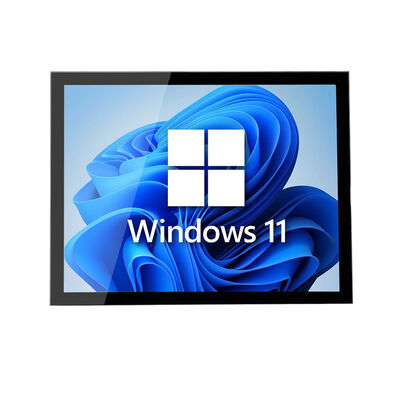

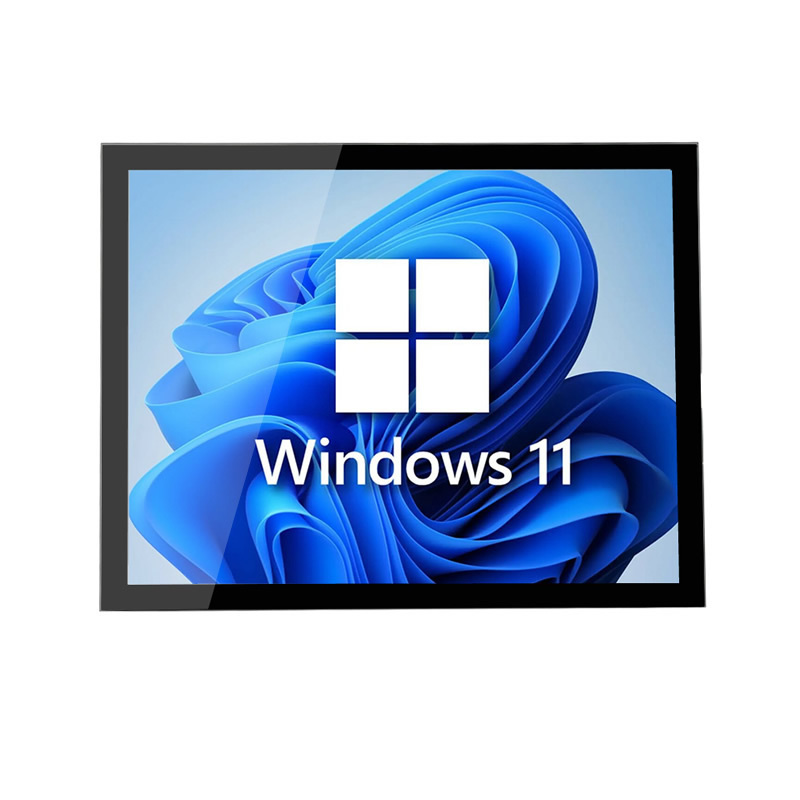

Product Image
