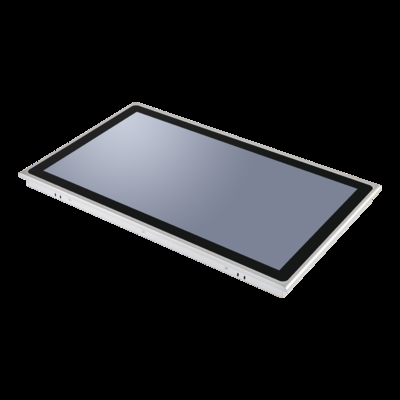

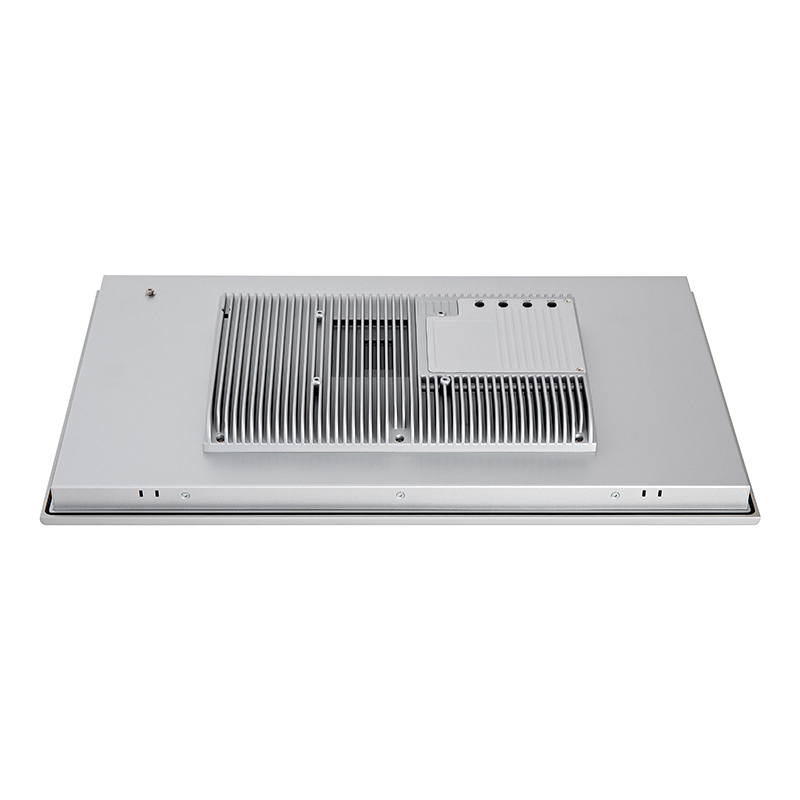

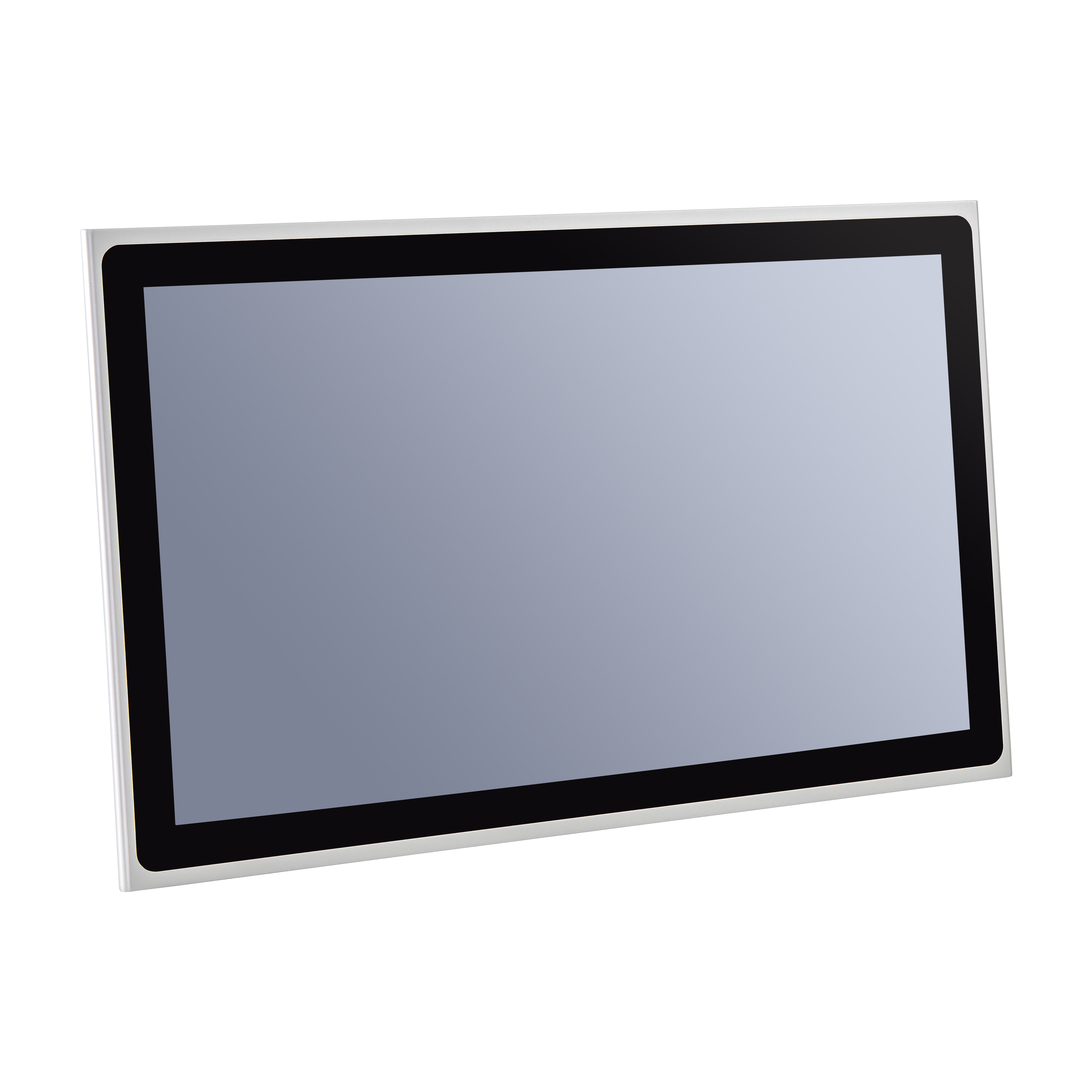

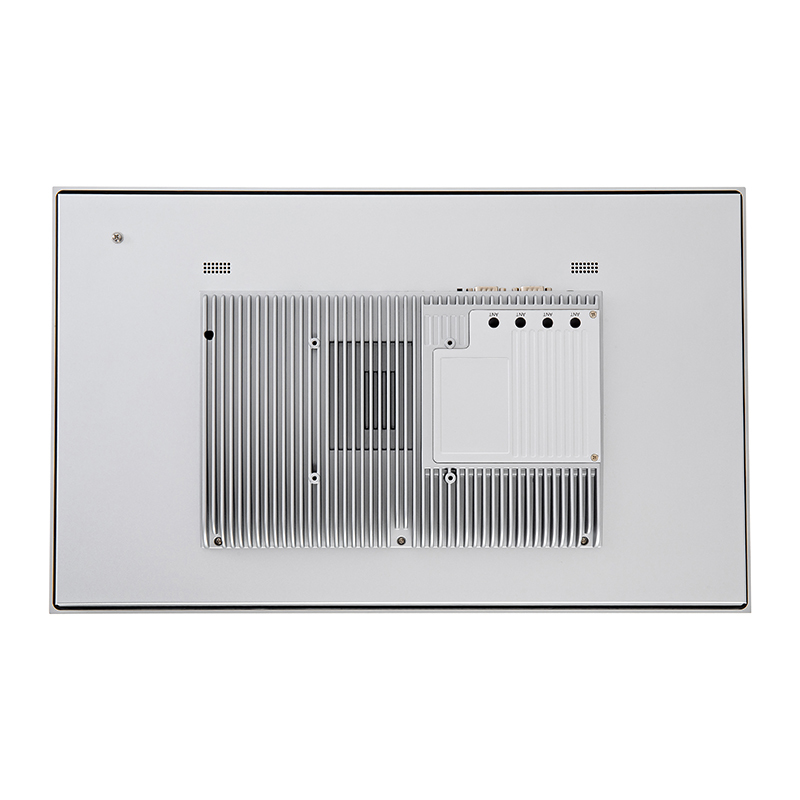

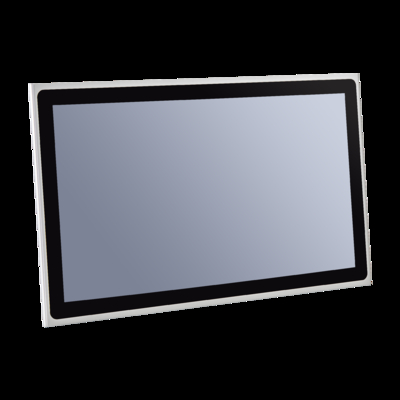

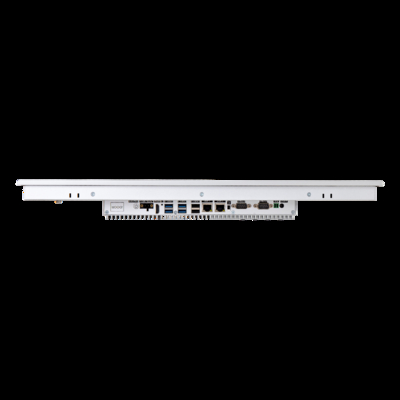

27" panel mount industrial HMI panel PC pure flat surface embedded touch computer
Hubungi saya untuk sampel gratis dan kupon.
ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.
xDetail produk
| Model | ITD27PPCT × B- × BECEPEPEPEPEP | Prosesor | lntel® j6412, n97 & 4 th ~ 12 gen u-series inti tm i3/i5/i7 |
|---|---|---|---|
| Ingatan | Jenis memori tergantung pada model CPU | Ethernet | 2 × GBE RJ45 Intel I210-AT |
| Slot Ekspansi | Mini-PCLE × 1 Ukuran penuh dengan kartu SIM untuk 3G/4GM.2 Kunci E × 1 untuk Kunci WiFi/BT M.2 B × 1 | Timer Pengawas | Windows® 10/11, Linux |
| Konstruksi | Desain aluminium | Pemasangan | VESA 100/ Panel Mount |
| Dimensi Potongan | 641.1 × 385,7 mm |
Deskripsi Produk
27" panel mount industrial HMI panel PC pure flat surface embedded touch computer
Features of 27" panel mount HMI
◼Supports Intel® J6412,N97 & 4 th ~ 12 th Gen U-Series Core TM i3/i5/i7 Processors
◼LCD+HDMI Dual Displays
◼IP65-rated Front Panel
◼Fanless Design with Aluminum Alloy Enclosure
◼9~36V Wide Range DC Input
Specifications of 27" embedded panel PC
|
Panel |
Cell Type/Glass Surface |
TFT |
|
Size/ Aspect Ratio |
27”/16:9 |
|
|
Active Area/ Pixel Pitch |
597.888(H) ×336.312(V)mm/0.3114 × 0.3114mm |
|
|
Native Resolution/ Colors |
1920×1080/16.7M |
|
|
Brightness/ Contrast |
300cd/㎡/1000:1 |
|
|
Response Time/ Viewing Angle(Typical) |
14ms/89/89/89/89 |
|
|
Light Source |
LED Backlight with 30000Hours’Lifetime |
System
|
Item |
ARM Solution |
X86 Solution 1 |
X86 Solution 2 |
|
CPU |
ARM Quad Core Cortex-A17 RK3288, 1.8GHz (RK3399/RK3568/RK3588 optional) |
Intel® Celeron J1900/J4125/J6412 2.0GHz |
Intel® Core i3/i5/i7 (4th~12th Generation optional) |
|
Chipset |
Rockchip |
Intel Bay Trail SoC |
Intel SoC Chipset |
|
Memory |
2GB; 4GB/8GB Optional
|
Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB; DDR4 SODIMM×1(Intel J4125/J6412) |
2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB DDR4 SODIMM ×2 (8th~12th gen.) |
|
Storage |
8GB; 16GB/32GB/64GB/128G Optional
|
1×mSATA, 1×SATA 1×M.2 (not available for J1900) Default to 64GB SSD |
1×mSATA, 1×SATA 1×M.2 Default to 64GB SSD |
|
Graphics |
Supports max. 4K resolution |
Intel HD/UHD Graphics (By CPU) |
Intel HD/UHD Graphics (By CPU) |
|
I/O |
1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 1 × COM(Optional); 1 × TF Card Support 8~128GB |
1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB 2.0 max. 6; 2×COM port max. 6; 1×Realtek ALC662 Line-Out /MIC IN |
1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB 2.0 max. 6; 2×COM max. 6; 1×Realtek ALC662 Line-Out /MIC IN |
|
LAN |
1×10/100/1000Mbps Ethernet |
1× 10/100/1000Mbps Ethernet( Dual LAN optional) |
1×10/100/1000Mbps Ethernet( Dual LAN optional) |
|
OS |
Android 7.1/8/10/11/12, etc. Linux Ubuntu(optional) |
Windows 7/10, Linux Windows 11(available for J4125/J6412) |
Windows 7/10, Linux Windows 11(available for 7th gen. or above) |
